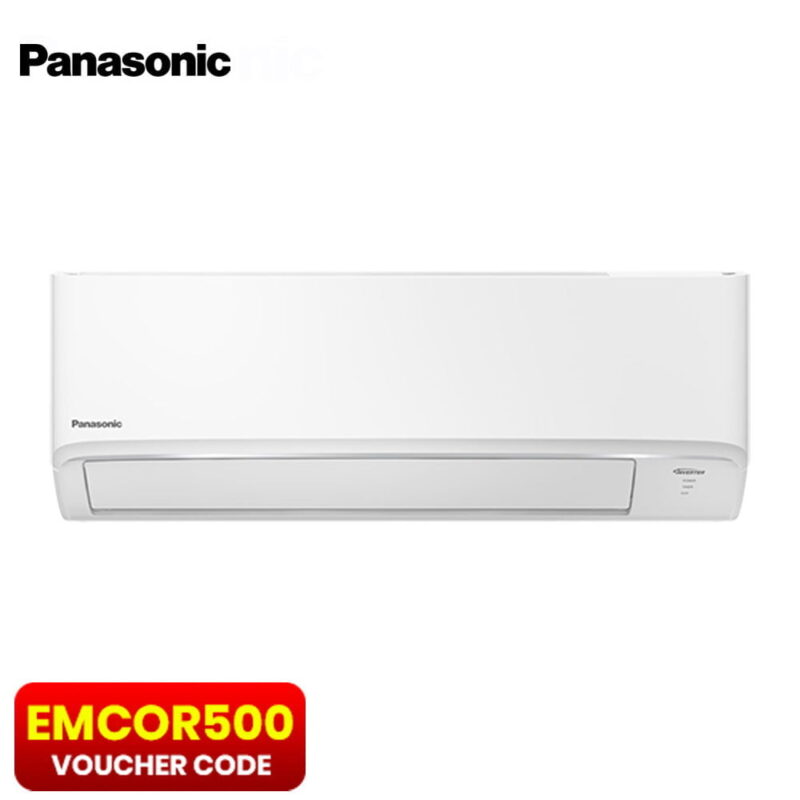

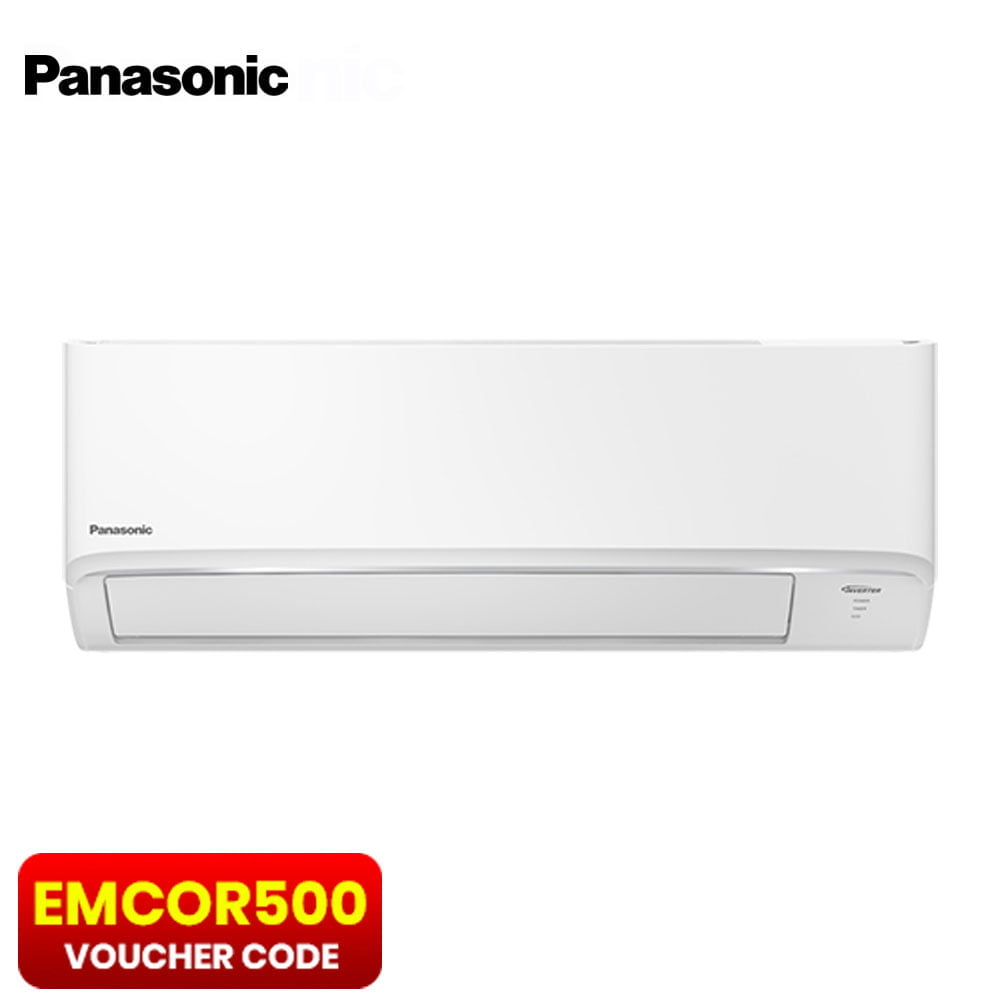

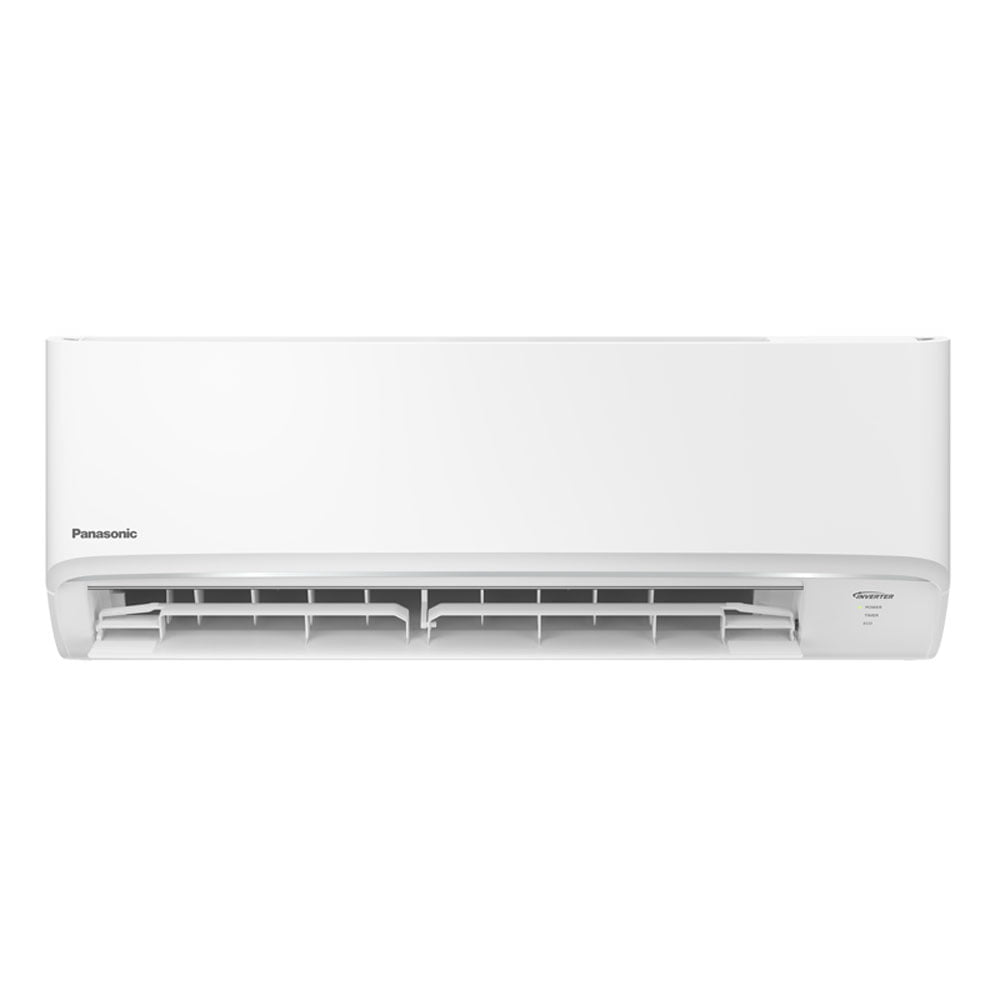

Panasonic 2HP Standard Inverter Split Type Aircon CS/CU-PU18WKQ

Description

Cooling Capacity

• (min-max):kW: 5.00 (1.10-5.40)

• (min-max):kJ/h: 18,000 (3,960-19,440)

EER

• (min-max):kJ/hW: 11.61 (13.66-10.80)

Electrical Data

• Voltage:V:230

• Current:A:7

• Power Input (min-max): W: 1,550 (290-1,800)

Moisture Removal

• L/h: 2.8

• Pt/h: 5.9

Air Circulation

• Indoor: m3/min (ft3/min): 12.6 (445)

• Outdoor: m3/min (ft3/min):39.3 (1,390)

Noise Level

• Indoor (H / L / Q-Lo): dB (A): 44/34/28

• Outdoor (H): dB (A): 51

Dimensions Indoor (Outdoor)

Height

– mm:290 (619)

– inch: 11-7/16 (24-3/8)

Width

– mm:779 (824)

– inch:30-11/16 (32-15/32)

Depth

– mm: 209 (299)

– inch: 8-1/4 (11-25/32)

Net Weight

• Indoor: kg (lb): 9 (20)

• Outdoor:kg (lb): 29 (64)

Refrigerant Pipe Diameter

• Liquid Side

– mm: ø 6.35

– inch: 1/4

• Gas Side

– mm:ø 12.70

– inch:1/2

Pipe Extension

• Chargeless Pipe Length: m: 10

• Maximum Pipe Length :m: 30

• Maximum Elevation Length: m:20

• Additional Refrigerant Gas*: g/m: 15

• Power Supply: Outdoor

Note: Available in Visayas and Mindanao.
