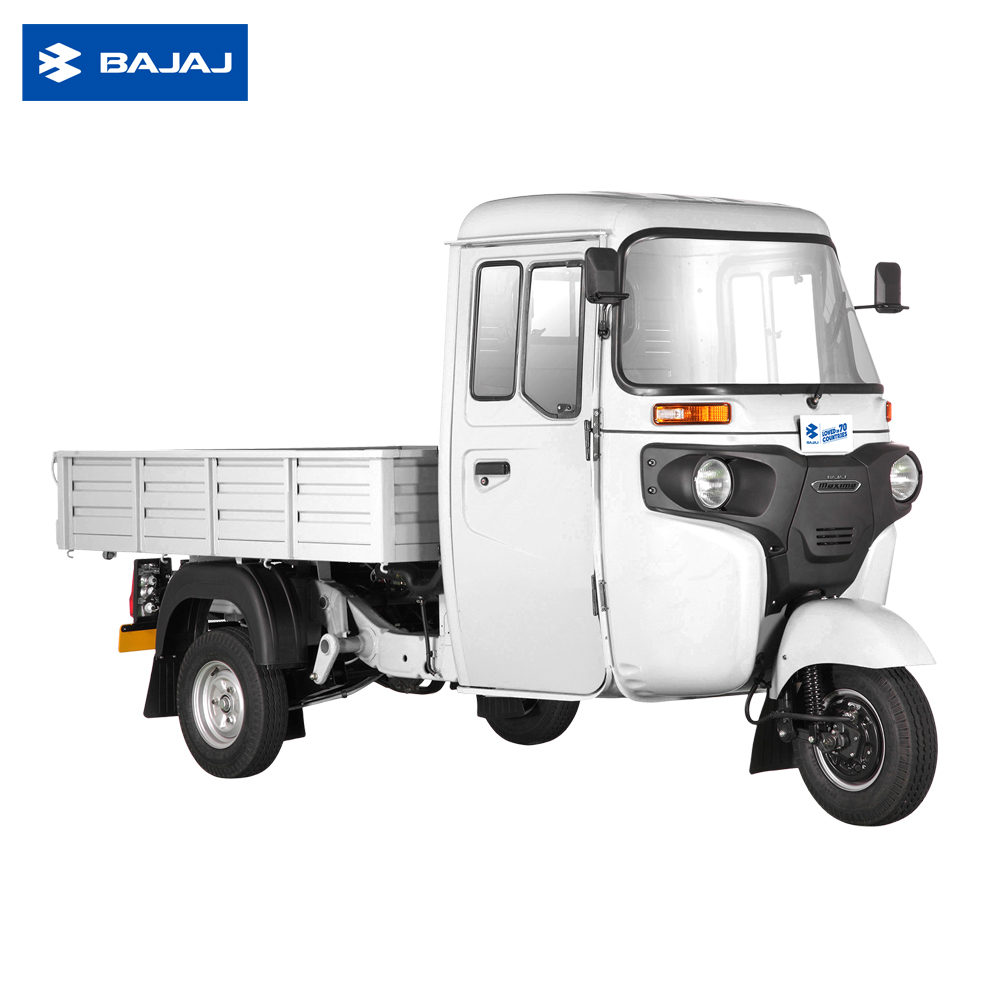

Bajaj Maxima Cargo

Description

Bajaj Maxima Cargo
Engine
• Engine type: Four stroke, Spark Ignition engine
• Bore x Stroke (mm): 67 × 67
• Engine Displacement (cc): 236.2 cc
• Compression Ratio: 9.7 ± 1 : 1
• Idling Speed: 1400 ± 300
• Max. Net Power: 8.00 kW @ 4500 ± 250 as per IS:14599
• Max. Net Torque: 20.1 N-m @ 3500 ±- 250 as per IS:14599
• Spark Plug: Bosch UR6CC, Champion RG6HCC
• Spark Plug Gap (mm): 0.6 to 0.7
• Lubrication: Pressurized lubrication by separate oil pump
• Transmission: 4 Forward + 1 Reverse
• Max. Speed: 60 kmph
• Min. Turning radius: 3240 mm

Framework
• Front Tire Pressure: 34 PSI (2.4 kg/cm²)
• Rear Tire Pressure: 38 PSI (4.0 kg/cm²)
• Front Tire Size: 4.5 x 10″
• Rear Tire Size: 4.5 x 10″
• Front / Rear Brake: Drum / Drum (200)

Electrical
• System: 12V DC
• Head Lamp: 35/35 W
• Position Pilot Lamp: 5 W
• Stop Lamp/Tail Lamp: 21/5 W
• Turn Signal Lamp: 10 W
• Neutral Indicator Lamp: Available (2W)
• High Beam Indicator Lamp: Available (2W)
• Turn Pilot Indicator Lamp: Available (2W)
• Speedometer Lamp: Available (2W)
• Fuel Meter Lamp: Available (2W)
• Horn: 12V DC, Type 2A
• Battery: 12V, 32 Ah

Dimension
• Length: 3230 mm
• Width: 1493 mm
• Height: 1818 mm
• Wheel base: 2125 mm
• Ground clearance: 180 mm
• Vehicle Kerb Weight: 503 kg
• Gross Vehicle Weight: 990 kg
• Fuel Tank Capacity: 12L

Note: Available in Visayas and Mindanao areas.
